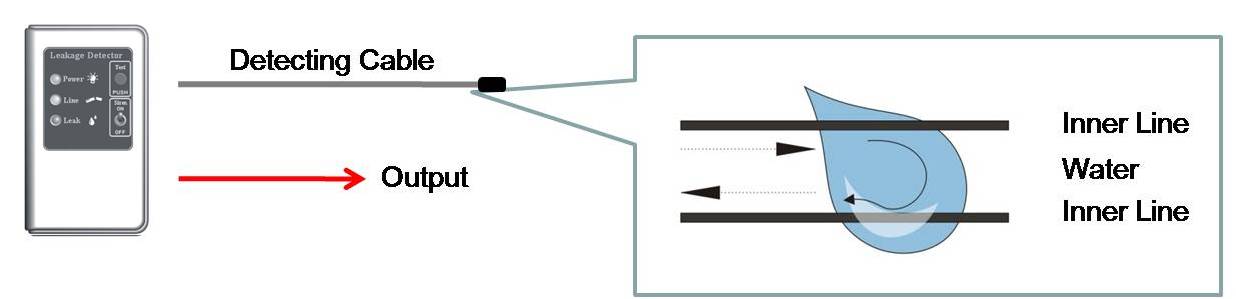

| Operation
Theory - Water Leakage Detection |
| |
- As water or liquid make contact
with detecting cables, the conductivity enhances
the intensity of electric current, and a leakage
signal is generated.
- Water leakage detector will
analysis the leakage signal against the preset
sensitivity level to verify the severity of
the leakage.
- If the leakage signal exceed
the preset sensivity level, the water leakage
detector will generate leakage alarm via its
in-build LEDs indicator or/and siren, and transmit
alarm signal to security system or other notification
devices.
- Detecting cable will partially
tur red at the same time.
|
| |
|
|
|
| |
|
|

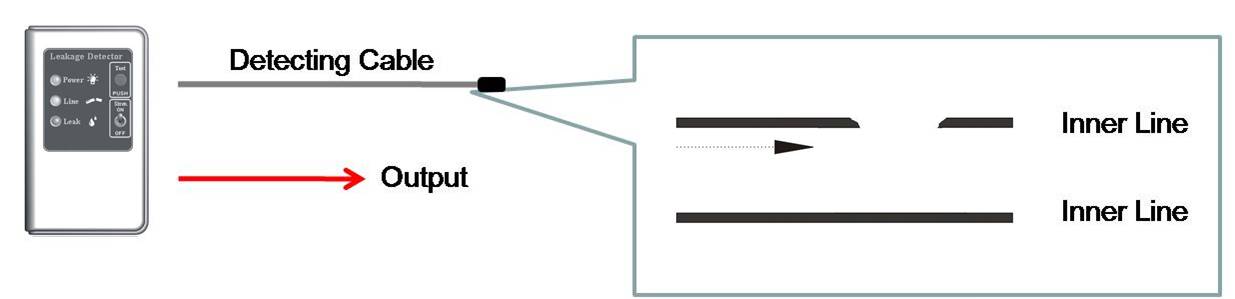

| Operation
Theory - Line Failure Detection |
| |
- As the detecting cables is
broken or failed, high resistance reading will
be picked up, and line failure signal is transmitted
to the water leakage detector.
- Water leakage detector will
generate line failure signal via its in-build
LEDs indicator or/and siren, and transmit alarm
signal to security system or other notification
devices
|
| |
|
|
|
| |
|
|

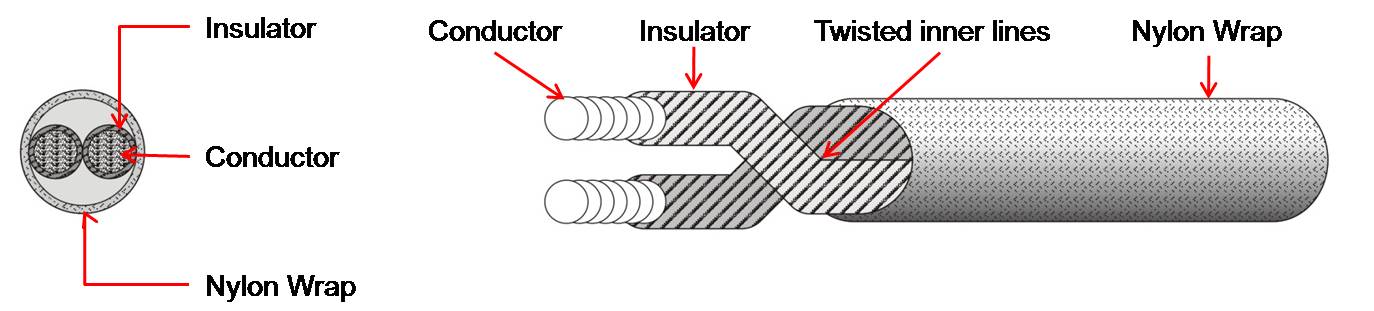

| Section
View of Detection Cable |
|
| |
|
| |
|
|

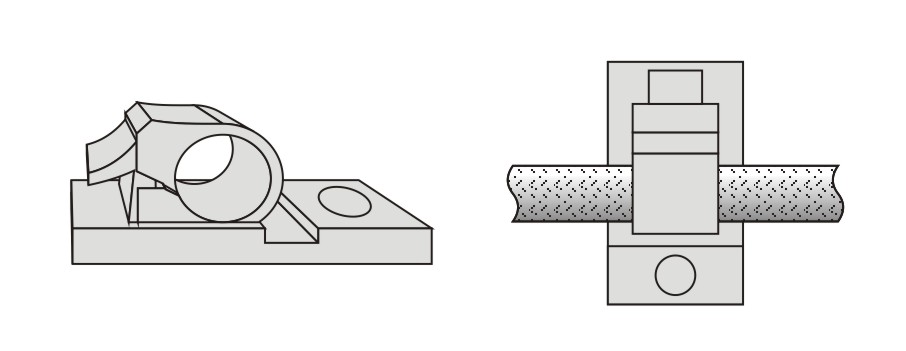

| Detection
Line Fixed Support |
|
