SURGE PROTECTOR PRODUCTS

Features
  • Protect telecommunication network for telephone equipments or surveillance camera from lighting damage
  • Surge energt is fully suppressed(RJ-45) or absored(RJ-11)/ to protect devices
  • Automatic recovery characteristic provides repeated protection in lightning frequent environment
  • Suitable for any severe applications
  • Modular Jack connector facilitates the installation
  • Conform to ANSI C62.45 and IEC61000-4-5 standard
  • CE approval.

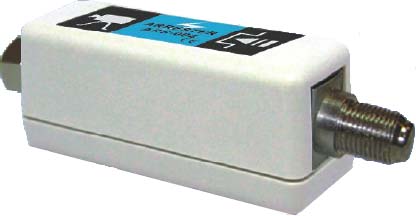

Male & Female F connector
Model No.
AISA-004-RF1
Signal Attenuation
< 15dB
Impulse Limit Voltage
12KV (10/700µs) / 12KV(COMBI)
Breakdown Voltage
184 ~ 276 Vmax
Max. Surge Discharge
20KA (8/20 µs)
Max. Current Loading
120 mA
Response Time
< 1 µs
Internal Impedance
< 120 O
Application
CCTV, TV (Coaxial Surge Protection)

Female & Female F connector
  Model No.
AISA-004-RF2
Signal Attenuation
< 1.5dB
Impulse Limit Voltage
12KV (10/700µs) / 12KV(COMBI)
Breakdown Voltage
184 ~ 276 Vmax
Max. Surge Discharge
20KA (8/20 µs)
Max. Current Loading
120 mA
Response Time
< 1 µs
Internal Impedance
< 120 O
Application
CCTV, TV (Coaxial Surge Protection)

Male & Female BNC connector
Model No.
AISA-004-RN1
Signal Attenuation
< 1.5dB
Impulse Limit Voltage
12KV (10/700µs) / 12KV(COMBI)
Breakdown Voltage
184 ~ 276 Vmax
Max. Surge Discharge
20KA (8/20 µs)
Max. Current Loading
120 mA
Response Time
< 1 µs
Internal Impedance
< 120 O
Application
CCTV, TV (Coaxial Surge Protection)

Female & Female BNC connector
Model No.
AISA-004-RN2
Signal Attenuation
< 1.5dB
Impulse Limit Voltage
12KV (10/700µs) / 12KV(COMBI)
Breakdown Voltage
184 ~ 276 Vmax
Max. Surge Discharge
20KA (8/20 µs)
Max. Current Loading
120 mA
Response Time
< 1 µs
Internal Impedance
< 120 O
Application
CCTV, TV (Coaxial Surge Protection)



Telephone Line Protector | LAN Line Protector | Coaxial Line Protector
